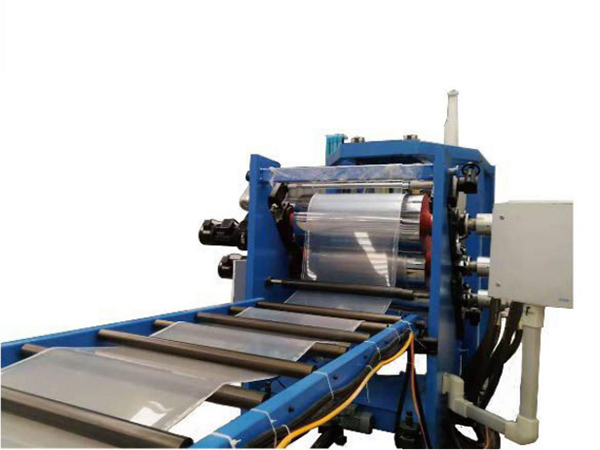

PET Sheet Extrusion Line

PET Sheet Extrusion Line
PET Sheet Extrusion Line

The Characteristics of Cowin’s PET extruder machine

  1. High vacuum degree.
  2. High torque twin screw extruder.
  3. Unique screw element and combination design.Low energy consumption.
  4. High precision pressure closed-loop control system, automatic control.Multi-layer extrusion, stable and reliable.
PET Sheet Extrusion Line
PET Sheet Extrusion Line

Recommended PET extruder machine

Parameters/ModelSuitable materialScrew sizeScrew structureSheet thickness(mm)Sheet width(mm)Max Capacity(kg/hr)Total Power(kw)
CHT75PLA、PETΦ71.4Brick type0.2-4.5≤800450-500275
CHT75DPLA、PETΦ71.4Brick type0.2-4.5≤800550-600295
CHT85PLA、PETΦ81Brick type0.2-4.5≤800650-750350
CHT95PLA、PETΦ93Brick type0.2-4.5≤1000900-1000495
CHT110PLA、PETΦ110Brick type0.2-4.5≤10001300-1500680
CHT75B Twin Screw Extruder
CHT110 Twin Screw Extruder

Project Details

Factory Location: China

  • Equipment: CHT65 Twin Screw Extruder PET Sheet Production Line
  • Application: PET Sheet
  • Output: 350 kg/h
  • Date: 2019.08
PET Sheet Extrusion Line
PET Sheet Extrusion Line
PET Sheet Extrusion Line
PET Sheet Extrusion Line

CHT75D Series PET extruder machine
CHT75D Series PET extruder machine

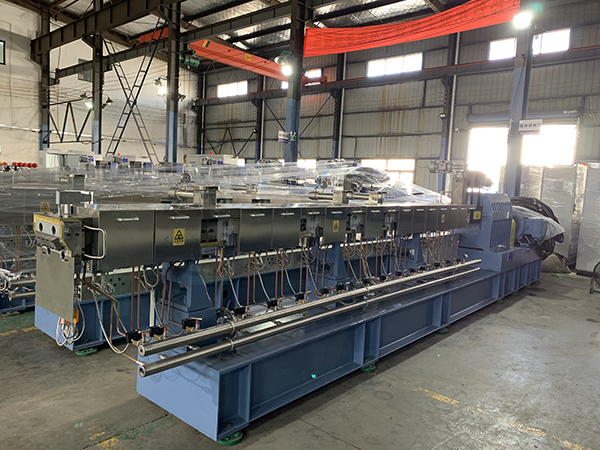

CHT85 Series PET extruder machine
CHT85 Series PET extruder machine

CHT95 Series PET extruder machine
CHT95 Series PET extruder machine

CHT110 Series PET extruder machine
CHT110 Series PET extruder machine

What is PET?

PET: Polyethylene terephthalate, is the most representative thermoplastic.

Thermoplastics: Plastics that are malleable at a certain temperature, solidify when cooled, and can repeat the process.
Thermoplastic features:

  • Superior electrical insulation
  • less affected by temperature
  • non-toxic
  • Weather resistance
  • Good chemical stability
  • low water absorption
  • Weak acid resistance
  • Resistant to organic solvents
  • Poor corona resistance
  • Not resistant to alkali

PET is a milky white or light yellow highly crystalline polymer with a smooth and shiny surface. Has the following characteristics:

  • Creep resistance
  • Fatigue resistance
  • abrasion resistant
  • good dimensional stability
  • Low wear and high hardness
  • Is the greatest toughness of any thermoplastic

Cowin offers a variety of thermoplastic elastomer production extrusion solutions. And also offers thermoset extrusion solutions. Learn more about this topic by reading: Thermoset Plastic Extrusion Line
