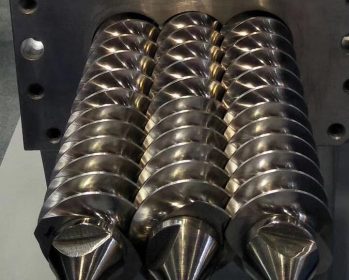

Triple Screw Extruder
China Professional Triple Screw Extruder Manufacturer — COWIN EXTRUSION
Triple Screw Extruder For Sale
- Model: MSE
- Speed: 300-600RPM
- Building block structure,interchangeable barrel and screw. Better plasticizing and mixing effects.
- Higher output.
- More energy efficient.
- Applicable fields: Highfillingmasterbatch, Colormasterbatch, Reactive extrusion.
Compared with the traditional twin screw extruder, the triple screw extruder not only retains many excellent properties of the twin screw extruder, but also has the following characteristics:
1. Better plasticizing and mixing effect:
The arrangement of triple screw ensures excellent self-cleaning effect. Compared with the traditional twin screw extruder, the screw meshing area has doubled, greatly improving the mixing effect of the screw. In many working conditions, it can replace the traditional internal mixer and reciprocating single screw extruder.
2. The length diameter ratio of screw is shorter, the residence and mixing time of material is longer.
3. Higher output: the output of triple screw extruder is more than 50% higher than that of the same twin screw extruder.
4. More energy saving: three screw extruder saves 20% – 40% energy than traditional twin screw extruder.
5. Application fields:
① high filling field
② color masterbatch and functional masterbatch field
③ various reactive extrusion
PRODUCTS
What Our Customers Have to Say
Llc Trans Business Logistics
Thank you for your support to our project. At the beginning of making the plan, the technical research and development team of Cowin patiently planned different plans for us to choose.During the production, keep us informed of the production progress.After the equipment was shipped to our factory, a professional team was dispatched to install and debug the equipment and train our staff.We are very grateful for this and look forward to our long-term cooperation next time.
Russia
Biodegradable Pellets
Canada
Food Pellets
The machine is the same as I excepted. The quality of your product is very competitive on the market. We have cooperated with other Chinese manufacturers before, Your goods are superior in quailty compared with those of other manufacturers. One thing we are not satisfied with that The delivery of cabinet is a bit slow, But the buyers have been helping us track the flow of goods in real time, thank you for your guys efforts.
Argentina
Faurecia
Thanks for the hard work of Cowin team. Due to the large project, our company hopes to find suppliers with high cost performance and good quality in China.After the inspection of Cowin, we conveyed the design scheme to cowin. Thanks to the hard work of the design team for several months, the project can be carried out smoothly.After installation and debugging, the machine has met our expectations and we look forward to further cooperation in the future.
France
Triple Screw Extruder Specifications
MSE-B Series triple screw extruder
| Model | Diameter (mm) | Center distance (mm) | L/D | Speed (rpm) | Power (kW) | Output (kg/h) |
|---|---|---|---|---|---|---|
| MSE-26B | 26.1 | 22 | 24-80 | 600 | 11 | 25-80 |
| MSE-30B | 30.2 | 26 | 24-80 | 600 | 15 | 50-120 |
| MSE-35B | 35.6 | 30 | 24-80 | 600 | 30 | 100-200 |
| MSE-40B | 41.1 | 34.5 | 24-80 | 600 | 45 | 120-350 |
| MSE-52B | 51.4 | 43 | 24-80 | 600 | 90 | 250-700 |
| MSE-65B | 62.4 | 52 | 24-80 | 600 | 132/160 | 400-1500 |
| MSE-75B | 71 | 60 | 24-80 | 600 | 200/220 | 600-2000 |
| MSE-95B | 93 | 78 | 24-80 | 600 | 400/450 | 2000-4000 |
| MSE-110B | 108 | 90 | 24-80 | 500 | 600/700 | 3000-7000 |
MSE-D Series triple screw extruder
| Model | Diameter (mm) | Center distance (mm) | L/D | Speed (rpm) | Power (kW) | Output (kg/h) |
|---|---|---|---|---|---|---|
| MSE-26D | 26.1 | 22 | 24-80 | 600 | 22 | 50-150 |
| MSE-30D | 30.2 | 26 | 24-80 | 600 | 30 | 100-200 |
| MSE-35D | 35.6 | 30 | 24-80 | 600 | 55 | 150-400 |
| MSE-40D | 41.1 | 34.5 | 24-80 | 600 | 90 | 250-700 |
| MSE-52D | 51.4 | 43 | 24-80 | 600 | 160 | 400-1500 |
| MSE-65D | 62.4 | 52 | 24-80 | 600 | 250/280 | 700-2500 |
| MSE-75D | 71 | 60 | 24-80 | 600 | 355/400 | 1000-4000 |
| MSE-95D | 93 | 78 | 24-80 | 600 | 800/900 | 2500-9000 |
Extensive Experience in Applications
Biodegradable Plastic
The main target markets for biodegradable plastic are plastic packaging film, agricultural film, disposable plastic bags and disposable plastic tableware.
Colour Masterbatch
The color masterbatch is composed of three basic elements: pigment or dye, carrier and additive. It is an aggregate made by super-constant pigment uniformly attached to the resin, which can be called pigment concentration.
Engineering Plastic
Compared with general plastics, engineering plastics can meet higher requirements in mechanical properties, durability, corrosion resistance, heat resistance and other aspects, and it is more convenient to process and can replace metal materials.
Filler Masterbatch
Filling masterbatch can be used to process plastic films, garbage bags, shopping bags, vest bags, packaging bags, etc. It has good dispersibility, blown film has no white spots and black spots, high fineness to guarantees product gloss and toughness.
LFT-G Impregnation & Extrusion
Long-fiber Reinforced Thermoplastic(LFRT),the length of the glass fiber is bigger than 3mm.while the commercialized LFRT is normally 6-25mm.
Non-crystallization dry PET sheet
Non-crystallization dry pet sheet extrusion has following advantage: Use in producing PET / PLA sheets , no need pre-drying crystallization of the energy consumption and adapt to the material for the production of the second , high yield , low energy consumption, high quality plastics characteristics.
Projects and Clients
Triple Screw Extruder FAQs
A: We are a factory. 20 years experience on extrusion. Leading supplier in Nanjing city.
A: 1 year, Main parts is made of high tool steel by special quenching treatment, with high corrosion resistance and wear resistance.
A:We can send engineers to your factory for installation and training if customers‘ required
A:Experienced mechanical designer customized-design provided.
A:Yes, Our technical department can help to analysis, design and test the new products you offered.
A:Experience engineer oversea installation service provided.
A:L/C,T/T,Western union , Paypal.
A:Yes.Before making your decision buying the equipment or not,you can bringsome material here to test-run the equipment.
